Specifcations/规格表
|
反射型 |
反射型 |
镜片反射型 |
对射型 |
|
|
Model/型号
|
GZ-10
GZ-10P
|
GZ-40
GZ-40P
|
GZ-200
GZ-200P
|
GZ-500
GZ-500P
|
|
|
Scanning distance/检出距离
|
10CM |
40CM |
2M |
5M |
|
|
Emitting ligh/发光源
|
RedLED(红光LED):630nm |
Operating voltage/ 工作电压
|
DC:10~30VDC±10%(Ripple P-P:10%Max) |
Current consumption/ 消耗电流
|
15mA Max |
Load current/ 负载电流
|
100mA Max at DC 24V |

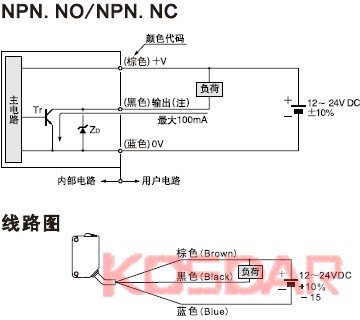

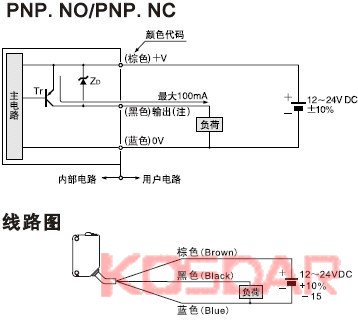

Output type/输出模式
|
N=NPN.NO.NC P=PNP.NO.NC |
Protection circuit/保护电路
|
Reversed supply ciruit protection,short citcuit protection output
电源反接保护及输出短路保护
|
Response time/ 反应时间
|
0.3 ms Max |
Insulation resistance/隔离阻抗
|
20M Ωmin.(DC500V) |
Voltage withstandatility/绝缘耐压
|
AC1000V 60Hz for 60 Sec |
Operating temperature/ 工作温度范围
|
-10°C~+45°C(No freezing allowed 不可结霜,结冰) |
Ambient hunidity/工作时温度
|
35%~85%RH相对温度 |
Storage temperarure/储存时温度
|
-10°C~+55°C(No freezing allowed 不可结霜,结冰) |
Storage hunidity/储存时温度
|
35%~95%RH相对温度 |
Material/外观材质
|
ABS |
Wiring method/出线方式
|
φ4×2M/3-wires(3线制)/φ4×2M/2-wires(2线制) |
Protection degree/ 防水等级
|
IP64 可定做IP67 |
Weight/重量
|
Approx.20g |
