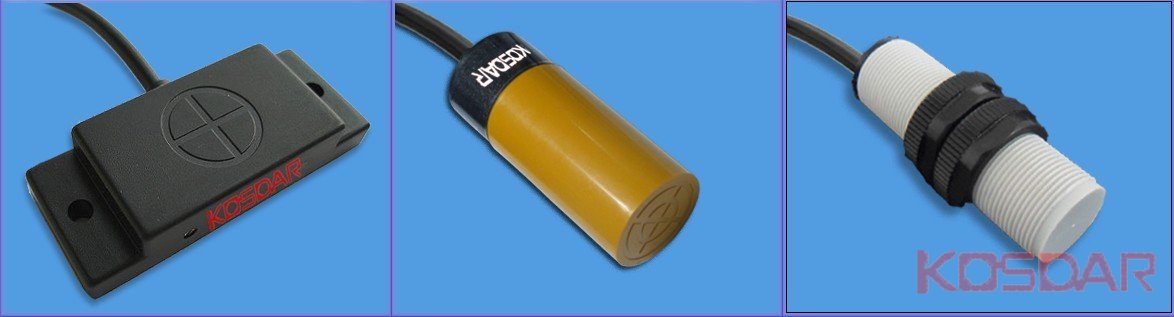

PR电容系列
------分隔线----------------------------
|
category
类别
|
Model
型号
|
detection mode
检出方式
|
detection distance
检测距离
|
detet the smallest objects
检测最小物体
|
Operating voltage工作电压
|
 |
PR5020-N |
NPN.NO |
20MM（可调） |
12×12×1(iron) |
10-30V DC |
| PR5020-NC |
NPN.NC |
| PR5020-P |
PNP.NO |
| PR5020-PC |
PNP.NC |
 |
PR1810-N |
NPN.NO |
10MM（可调） |
12×12×1(iron) |
10-30V DC |
| PR1810-NC |
NPN.NC |
| PR1810-P |
PNP.NO |
| PR1810-PC |
PNP.NC |
 |
PR3415-N |
NPN.NO |
15MM（可调） |
12×12×1(iron) |
10-30V DC |
| PR3415-N |
NPN.NC |
| PR3415-N |
PNP.NO |
| PR3415-N |
PNP.NC |
| Model/型号 |
PR5020-N
PR5020-P
|
PR3415-N
PR3415-P
|
PR1810-N
PR1810-P
|
|
Scanning distance/检出距离
|
20mm |
15MM |
10mm |
|
Recommened distance/建议距离
|
2~20mm |
2~15 |
2~10mm |
|
Standard sensing object/标准检测物
|
Nonmetallic/非金属 |
|
Response friquwncy/反应频率
|
DC:50Hz |
|
Hysteresis/磁带
|
1O%≤sensing distance |
|
Operating voltage/ 工作电压
|
DC:10～30VDC±10% |
|
Current consumption/ 消耗电流
|
DC:≤8mA No—Load |
|
Load current/ 负载电流
|
DC:30V 200mA Max |
|
Leakage current/ 漏电电流
|
DC:≤1.1mA no-Load |
|
Residual votage/ 残余电压
|
DC:≤1.5VDC No-load |
|
Operating temperature/ 工作温度范围
|
-20°C～+70°C |
|
Material/外观材质
|
ABS/特氟龙 |
|
Wiring method/出线方式
|
φ3×2M/3-wires(3线制) |
|
Protection degree/ 防水等级
|
IP66 |

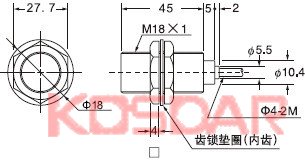

PR5020-N /PR5020-P
PR1810-N / PR1810-P
PR3415-N /PR3415-P
|
